GASES |

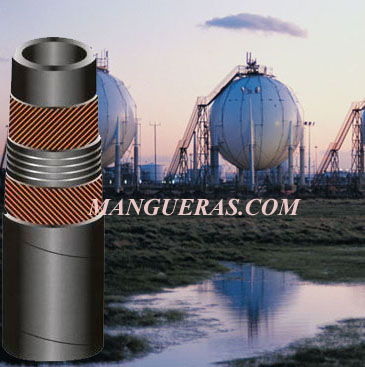

Manguera para impulsión GLP, propano a 25 bar |
Temperatura de -30ºC a +70ºC. |
Norma de fabricación EN-1762 tipo SD |
Tubo interior de caucho NBR color negro conductivo |
Refuerzos textiles y con dos hilos de cobre para descarga estática |
Cubierta exterior de caucho sintético negro |
Marcada en relieve con presión, y norma y tipo |
|
|
EURO LPG SD 25 |
|
Código |
Diámetro Int./ Ext. |
P. Trabajo/Rotura |
Peso Kg/m |
Vacío a 20ºC 0 bar |
Radio 0 bar/20ºC |
Rollos (metros) |
00000LPGSD013 |
13 x 23 |
25/100 bar |
0,430 |
0,8 |
90 mm |
40 |
00000LPGSD016 |
16 x 26 |
25/100 bar |
0,500 |
0,8 |
95 mm |
40 |
00000LPGSD019 |
19 x 31 |
25/100 bar |
0,670 |
0,8 |
100 mm |
40 |
00000LPGSD025 |
25 x 38 |
25/100 bar |
0,870 |
0,8 |
150 mm |
40 |
00000LPGSD032 |
32 x 45 |
25/100 bar |
1,130 |
0,8 |
200 mm |
40 |
00000LPGSD038 |
38 x 52 |
25/100 bar |
1,590 |
0,8 |
280 mm |
40 |
00000LPGSD050 |
50 x 67 |
25/100 bar |
2,270 |
0,8 |
350 mm |
40 |
00000LPGSD063 |
63 x 81 |
25/100 bar |
3,050 |
0,8 |
480 mm |
40 |
00000LPGSD076 |
76 x 94 |
25/100 bar |
3,680 |
0,8 |
550 mm |
40 |
00000LPGSD100 |
100 x 120 |
25/100 bar |
4,810 |
0,8 |
720 mm |
40 |
|
|
|
