PTFE medio hydraulic |

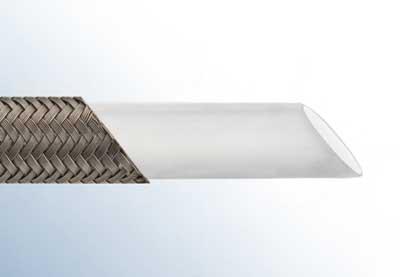

Tubo de PTFE ligero con una trenza exterior inoxidable |
Temperatura de -70ºC a +260ºC |
Tubo interior extrusionado de PTFE virgen (tipo T1B) o antiestatico (T1BA) |
Mayor espesor del tubo para racorar con racores hidraulicos |
Cubierta exterior de 1 trenza de acero INOX-304 |
Sin marcar |
|
|
PTFE T1B / T1BA |
|
Codigo |
Diámetro Int./Ext. (en mm) |
Peso (kg/m) |
Radio 0 bar/20ºC (en mm) |
P.Trabajo/Rotura en bar 20ºC |
Rollos (metros) |
Codigo |
PTFET1B000005 |
4,9" 5,16 x 8,43 |
0,090 |
51 |
276/828 |
|
PTFET1BA00004 |
PTFET1B000005 |
5,1" 5,36 x 8,61 |
0,094 |
64 |
264/793 |
|
PTFET1BA00005 |
PTFET1B000006 |
6,7" 6,96 x 9,86 |
0,092 |
76 |
224/672 |
|
PTFET1BA00006 |
PTFET1B000008 |
8,4" 8,66 x 10,54 |
0,141 |
102 |
207/621 |
|
PTFET1BA00008 |
PTFET1B000010 |
10,3" 10,64 x 14,10 |
0,148 |
133 |
183/552 |
|
PTFET1BA00010 |
PTFET1B000013 |
13,4" 13,36 x 15,88 |
0,249 |
152 |
161/483 |
|
PTFET1BA00013 |
PTFET1B000016 |
16,6" 17,12 x 20,57 |
0,290 |
178 |
114/345 |
|
PTFET1BA00016 |
PTFET1B000019 |
19,8" 19,30 x 23,77 |
0,339 |
203 |
103/310 |
|
PTFET1BA00019 |
PTFET1B000022 |
22,1" 21,59 x 26,09 |
0,382 |
229 |
92/276 |
|
PTFET1BA00022 |
PTFET1B000026 |
26,1" 26,62 x 28,45 |
0,461 |
305 |
80/241 |
|
PTFET1BA00026 |
|
|
ptfe DOS TRENZAS |
Tubo de PTFE medio con dos trenzas exteriores inoxidables |
Temperatura de -70ºC a +260ºC |
Tubo interior extrusionado de PTFE virgen (tipo TD1B) o antiestatico (TD1BA) |
Mayor espesor del tubo interior para racorar con racores hidraulicos |
Cubierta exterior de dos trenzas de acero INOX AISI-304 |
Sin marcar |
|
|
PTFE TD1B/TD1BA |
|
Codigo |
Diámetro Int./Ext. (en mm) |
Peso (kg/m) |
Radio 0 bar/20ºC (en mm) |
P.Trabajo/Rotura en bar 20ºC |
Rollos (metros) |
Codigo |
PTFETD1B00004 |
4,9" 5,16 x 8,89 |
0,150 |
75 |
322/966 |
|
PTFETD1BA0004 |
PTFETD1B00005 |
5,1" 5,36 x 9,07 |
0,152 |
75 |
310/931 |
|
PTFETD1BA0005 |
PTFETD1B00006 |
6,7" 6,96 x 10,47 |
0,179 |
85 |
253/759 |
|
PTFETD1BA0006 |
PTFETD1B00008 |
8,4" 8,66 x 12,57 |
0,241 |
130 |
237/710 |
|
PTFETD1BA0008 |
PTFETD1B00010 |
10,3" 10,64 x 14,68 |
0,311 |
135 |
206/621 |
|
PTFETD1BA0010 |
PTFETD1B00013 |
13,4" 13,36 x 18,09 |
0,411 |
165 |
189/566 |
|
PTFETD1BA0013 |
PTFETD1B00016 |
16,6" 17,12 x 20,88 |
0,470 |
195 |
133/414 |
|
PTFETD1BA0016 |
PTFETD1B00019 |
19,8" 19,30 x 25,54 |
0,551 |
225 |
126/379 |
|
PTFETD1BA0019 |
PTFETD1B00022 |
22,1" 21,59 x 26,80 |
0,623 |
230 |
115/345 |
|
PTFETD1BA0022 |
PTFETD1B00026 |
26,1" 26,62 x 30,79 |
0,732 |
305 |
93/280 |
|
PTFETD1BA0026 |
|
|
