USOS GENERALES |
Manguera para aspersión de agua y líquidos en general. |
Temperatura de -20ºC a +50ºC. |
Tubo de PVC amarillo. |
Refuerzo de PVC blanco fusionado con el tubo. |
Marcada con el nombre. |
|
|
|
|
|
|

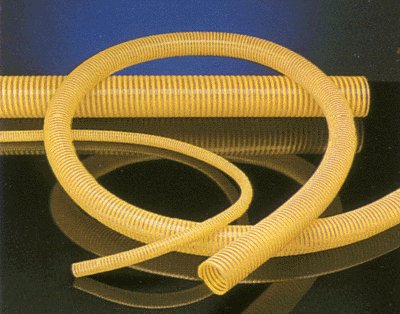

HELIFLEX AMARILLA |
|
|
Diámetro Int/Ext |
P. Trabajo/Rotura |
Peso Kg/m |
Vacío a 20ºC 0 bar |
Radio 0 bar/20ºC |
Rollos (metros) |
0000018112020 |
20 x 25 |
7/25 bar |
0,210 |
- - |
100 mm |
50 |
0000018112025 |
25 x 30 |
7/25 bar |
0,270 |
- - |
125 mm |
50 |
0000018112030 |
30 x 35 |
7/25 bar |
0,340 |
- - |
150 mm |
50 |
0000018112032 |
32 x 37 |
7/25 bar |
0,360 |
- - |
160 mm |
50 |
0000018112035 |
35 x 40 |
7/25 bar |
0,450 |
- - |
200 mm |
50 |
0000018112040 |
40 x 46 |
6/22 bar |
0,530 |
- - |
220 mm |
50 |
0000018112045 |
45 x 52 |
6/22 bar |
0,670 |
- - |
250 mm |
50 |
0000018112050 |
50 x 57 |
6/22 bar |
0,750 |
- - |
300 mm |
50 |
0000018112055 |
55 x 62 |
5/20 bar |
0,860 |
- - |
320 mm |
50 |
0000018112060 |
60 x 68 |
5/20 bar |
1,060 |
- - |
350 mm |
50 |
0000018112065 |
65 x 73 |
5/20 bar |
1,120 |
- - |
400 mm |
50 |
0000018112070 |
70 x 79 |
5/20 bar |
1,280 |
- - |
500 mm |
50 |
0000018112075 |
75 x 84 |
5/20 bar |
1,380 |
- - |
580 mm |
50 |
0000018112080 |
80 x 91 |
5/20 bar |
1,600 |
- - |
700 mm |
30 |
0000018112090 |
90 x 100 |
4/16 bar |
1,950 |
- - |
760 mm |
30 |
0000018112100 |
100 x 111 |
4/16 bar |
2,300 |
- - |
800 mm |
30 |
|
|
|
