Accesorios LatÓn
Racores y reducciones para la industria general, roscas gas BSP, otras bajo pedido.

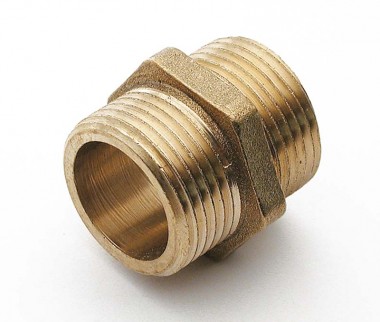

Fig. 33-L - Macho igual
Código
Rosca BSP
000FIG33L003L
1/8"
000FIG33L006L
1/4"
000FIG33L009L
3/8"
000FIG33L012L
1/2"
000FIG33L019L
3/4"
000FIG33L025L
1"
000FIG33L032L
1-1/4"
000FIG33L038L
1-1/2"
000FIG33L050L
2"
000FIG33L063L
2-1/2"
000FIG33L075L
3"
000FIG33L100L
4"

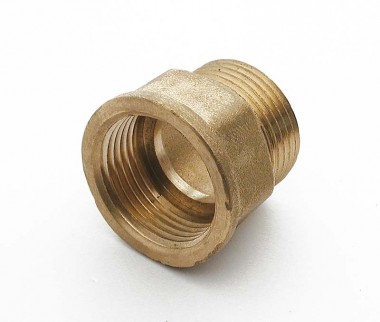

FIG. 62-L - MACHO - HEMBRA IGUAL
Código
Rosca BSP
000FIG62L009L
3/8"
000FIG62L012L
1/2"
000FIG62L019L
3/4"
000FIG62L025L
1"
000FIG62L032L
1-1/4"
000FIG62L038L
1-1/2"
000FIG62L050L
2"

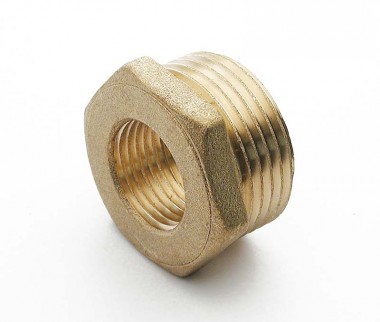

FIG. 75R-L TUERCA REDUCCION MACHO-HEMBRA
Código
Rosca Macho BSP
Rosca Hembra BSP
000FIG75R001L
1/4"
1/8"
000FIG75R002L
3/8"
1/8"
000FIG75R003L
3/8"
1/4"
000FIG75R004L
1/2"
1/8"
000FIG75R005L
1/2"
1/4"
000FIG75R006L
1/2"
3/8"
000FIG75R007L
3/4"
1/2"
000FIG75R008L
1"
1/2"
000FIG75R009L
1"
3/4"
000FIG75R010L
1-1/4"
1/2"
000FIG75R011L
1-1/4"
3/4"
000FIG75R012L
1-1/4"
1"
000FIG75R013L
1-1/2"
1/2"
000FIG75R014L
1-1/2"
3/4"
000FIG75R015L
1-1/2"
1"
000FIG75R016L
1-1/2"
1-1/4"
000FIG75R017L
2"
1/2"
000FIG75R018L
2"
3/4"
000FIG75R019L
2"
1"
000FIG75R020L
2"
1-1/4"
000FIG75R021L
2"
1-1/2"
000FIG75R022L
2-1/2"
2"
000FIG75R023L
3"
2"
000FIG75R024L
3"
2-1/2"
000FIG75R025L
4"
2"
000FIG75R026L
4"
2-1/2"
000FIG75R027L
4"
3"
FIG. 33R-L MACHON REDUCIDO
Código
Rosca Macho BSP
Rosca Macho BSP
000FIG33R001L
1/8"
1/4"
000FIG33R002L
1/8"
3/8"
000FIG33R003L
1/4"
3/8"
000FIG33R004L
1/4"
1/2"
000FIG33R005L
3/8"
1/2"
000FIG33R006L
1/2"
3/4"
000FIG33R007L
1/2"
1"
000FIG33R008L
1/2"
1-1/4"
000FIG33R009L
1/2"
1-1/2"
000FIG33R010L
1/2"
2"
000FIG33R011L
3/4"
1"
000FIG33R012L
3/4"
1-1/2"
000FIG33R013L
3/4"
2"
000FIG33R014L
1"
1-1/4"
000FIG33R015L
1"
1-1/2"
000FIG33R016L
1"
2"
000FIG33R017L
1-1/4"
1-1/2"
000FIG33R018L
1-1/4"
2"
000FIG33R019L
1-1/2"
2"
000FIG33R020L
2"
2-1/2"
000FIG33R021L
2"
3"
000FIG33R022L
2-1/2"
3"
000FIG33R023L
2-1/2"
4"
000FIG33R024L
3"
4"

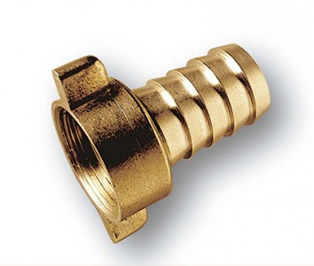

FIG 22-L HEMBRA PARA MANGUERA
Código
Rosca Hembra BSP
Ø Manguera (mm)
000FIG220014L
1/2"
14
000FIG220016L
5/8"
16
000FIG220020L
3/4"
20
000FIG220025L
1"
25
000FIG220030L
1-1/4"
30
000FIG220032L
1-1/2"
35
000FIG220050L
2"
50
FIG. 66-L MANGUITO HEMBRA-HEMBRA
Código
Rosca BSP
000FIG66L009L
3/8"
000FIG66L012L
1/2"
000FIG66L019L
3/4"
000FIG66L025L
1"
000FIG66L032L
1-1/4"
000FIG66L038L
1-1/2"
000FIG66L050L
2"
000FIG66L063L
2-1/2"
000FIG66L075L
3"
000FIG66L100L
4"

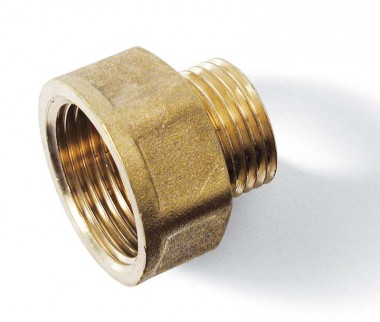

FIG 62R-L MANGUITO REDUCCION H-M
Código
Rosca Macho BSP
Rosca Hembra BSP
000FIG
62R001L
1/8"
1/4"
000FIG62R002L
1/8"
3/8"
000FIG62R003L
1/4"
3/8"
000FIG62R004L
3/8"
1/2"
000FIG62R005L
1/2"
3/4"
000FIG62R006L
1/2"
1"
000FIG62R007L
3/4"
1"
000FIG62R008L
3/4"
1-1/4"
000FIG62R009L
1"
1-1/4"
000FIG62R010L
1"
1-1/2"
000FIG62R011L
1-1/4"
1-1/2"
000FIG62R012L
1-1/2"
2"

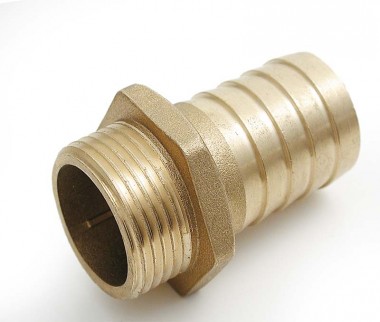

FIG. 30-L MACHO ROSCA BSP PARA MANGUERA
Código
Rosca Macho BSP
Ø Manguera (mm)
000FIG30P001L
1/8"
8
000FIG30P002L
1/8"
10
000FIG30P003L
1/4"
6
000FIG30P004L
1/4"
8
000FIG30P005L
1/4"
10
000FIG30P006L
1/4"
12
000FIG30P007L
3/8"
8
000FIG30P008L
3/8"
10
000FIG30P009L
3/8"
12
000FIG30P010L
3/8"
15
000FIG30P011L
3/8"
20
000FIG30P012L
1/2"
8
000FIG30P013L
1/2"
10
000FIG30P014L
1/2"
12
000FIG30P015L
1/2"
15
000FIG30P016L
1/2"
20
000FIG30P017L
3/4"
15
000FIG30P018L
3/4"
20
000FIG30P019L
3/4"
25
000FIG30P020L
1"
20
000FIG30P021L
1"
25
000FIG30P022L
1"
30
000FIG30P023L
1"
35
000FIG30P024L
1-1/4"
30
000FIG30P025L
1-1/4"
35
000FIG30P026L
1-1/4"
40
000FIG30P027L
1-1/2"
35
000FIG30P028L
1-1/2"
40
000FIG30P029L
1-1/2"
45
000FIG30P030L
1-1/2"
50
000FIG30P031L
2"
50
000FIG30P032L
2"
60
000FIG30P033L
2-1/2"
60
000FIG30P034L
2-1/2"
65
000FIG30P035L
2-1/2"
70
000FIG30P036L
3"
65
000FIG30P037L
3"
70
000FIG30P038L
3"
75
000FIG30P039L
4"
100

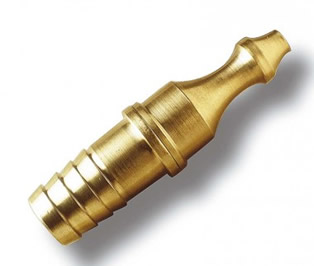

FIG. 25-L PITORRO LATON
Código
Ø Manguera (mm)
000F
IG250015L
15
000FIG250020L
20
000FIG250025L
25
000FIG250030L
30
000FIG250035L
35
FIG. 24-L LANZA RIEGO GRADUABLE
Código
Ø Manguera (mm)
000FIG240015L
15
000FIG240020L
20
000FIG240025L
25

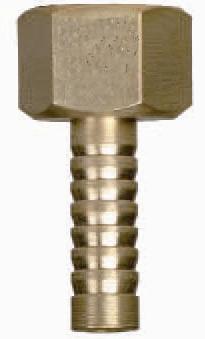

FIG 22-L HEMBRA PARA MANGUERA
Código
Rosca Hembra BSP
Ø Manguera (mm)
000FIG22H010L
1/4"
10
000FIG22H012L
3/8"
12
000FIG22H015L
1/2"
15
000FIG22H025L
3/4"
20
000FIG22H030L
1"
25
000FIG22H035L
1-1/4"
35
000FIG22H040L
1-1/2"
40
000FIG22H050L
2"
50
Podemos fabricar otros diámetros, presiones y colores sobre demanda. JJB EUROMANGUERAS, S.L., puede modificar sin previo aviso las características técnicas de sus productos. Rogamos nos consulten.
