PROTECCION CABLES |
Manguera para protección de cables, mangueras hidráulicas, instalaciones eléctricas. |
Protección IP-40 E-60529 para metal 101, IP-68 el tipo metal-pvc 102. |
Temperatura de 400ºC para tipo 101, y recubierto de PVC para el tipo 102. |
Tubo de acero galvanizado para el tipo 101, y recubierto de PVC para el tipo 102. |
Conductividad eléctrica conforme normas BGR132 (ZH1/200). |
Construcción con espesores de 0,2 mm a 0,5 mm según diámetro. |
Suministro en rollos de 50 metros hasta 23 mm y de 25 metros de 29 a 51 mm. |
|
|
|

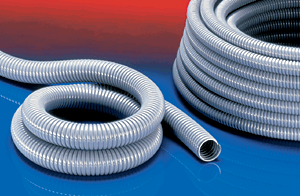

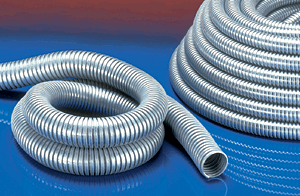

METAL 101/ METAL PVC 102 |
|
Código METAL 101 |
Diámetro Int/Ext (en mm) |
P.Trabajo (en bar) 101-102 |
Peso (kg/m) 101-102 |
Radio (en mm) 101-102 |
Código MET-PVC 102 |
Diámetro. Int./Ext. (en mm) |
00METAL010105 |
5 x 7 |
- - |
0,05/0,06 |
20/26 |
00METALP10105 |
5 x 8 |
00METAL010106 |
6 x 8 |
- - |
0,05/0,07 |
21/29 |
00METALP10106 |
6 x 9 |
00METAL010107 |
7 x 9 |
- - |
0,06/0,08 |
23/32 |
00METALP10107 |
7 x 10 |
00METAL010108 |
8 x 10 |
- - |
0,07/0,09 |
25/35 |
00METALP10108 |
8 x 11 |
00METAL010109 |
9 x 11 |
- - |
0,08/0,10 |
30/37 |
00METALP10109 |
9 x 12 |
00METAL010110 |
10 x 13 |
- - |
0,11/0,14 |
32/40 |
00METALP10110 |
10 x 14 |
00METAL010111 |
11 x 14 |
- - |
0,12/0,14 |
34/42 |
00METALP10111 |
11 x 15 |
00METAL010113 |
13 x 16 |
- - |
0,14/0,17 |
40/45 |
00METALP10113 |
13 x 17 |
00METAL010114 |
14 x 17 |
- - |
0,15/0,18 |
40/49 |
00METALP10114 |
14 x 18 |
00METAL010115 |
15 x 18 |
- - |
0,16/0,19 |
45/52 |
00METALP10115 |
15 x 19 |
00METAL010116 |
16 x 19 |
- - |
0,17/0,21 |
45/55 |
00METALP10116 |
16 x 20 |
00METAL010117 |
17 x 20 |
- - |
0,18/0,23 |
50/58 |
00METALP10117 |
17 x 21 |
00METAL010118 |
18 x 21 |
- - |
0,19/0,24 |
50/61 |
00METALP10118 |
18 x 22 |
00METAL010122 |
22 x 26 |
- - |
0,31/0,38 |
65/72 |
00METALP10122 |
22 x 27 |
00METAL010123 |
23 x 27 |
- - |
0,32/0,40 |
67/76 |
00METALP10123 |
23 x 28 |
00METAL010129 |
29 x 34 |
- - |
0,42/0,53 |
85/98 |
00METALP10129 |
29 x 36 |
00METAL010131 |
31 x 36 |
- - |
0,45/0,56 |
90/102 |
00METALP10131 |
31 x 38 |
00METAL010138 |
38 x 43 |
- - |
0,54/0,71 |
105/118 |
00METALP10138 |
38 x 45 |
00METAL010140 |
40 x 45 |
- - |
0,56/0,75 |
110/121 |
00METALP10140 |
40 x 47 |
00METAL010145 |
45 x 50 |
- - |
0,63/1,00 |
120/130 |
00METALP10145 |
45 x 52 |
00METAL010147 |
47 x 52 |
- - |
0,66/1,04 |
125/135 |
00METALP10147 |
47 x 54 |
00METAL010149 |
49 x 54 |
- - |
0,68/1,08 |
130/140 |
00METALP10149 |
49 x 56 |
00METAL010151 |
51 x 56 |
- - |
0,71/1,14 |
140/145 |
00METALP10151 |
51 x 58 |
|
|
|
