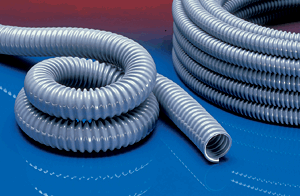

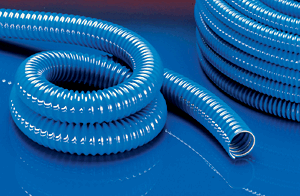

PROTECCION CABLES |
Manguera para protección de cables, mangueras hidráulicas, instalaciones eléctricas. |
Protección IP-68 EN-60529 para PVC-111 y para el tipo PUR 118. |
Temperatura de -20ºC a +70ºC para tipo 111 y de -40ºC a +90ºC para el tipo 118. |
Tubo de PVC para el tipo 111, y de ester-poliuretano para el tipo 118. |
Refuerzo con espiral con alambre de acero recubierto de PVC. |
Construcción con espesores de 0,4 mm a 0,9 mm según diámetro. |
Suministro en rollos de 50 metros hasta 21 mm y de 25 metros de 30 a 48 mm. |
|
|
|
PVC 111/PUR 118 |
|
Código PVC-111 |
Diámetro Int/Ext (en mm) |
P.Trabajo (en bar) 111-118 |
Peso (kg/m) 111-118 |
Radio (en mm) 111-118 |
Código PUR-118 |
Diámetro. Int./Ext. (en mm) |
0000PVC011107 |
7 x 10 |
- - |
0,05/0,05 |
10 |
0000PVC011807 |
7 x 10 |
0000PVC011110 |
10 x 14 |
- - |
0,08/0,07 |
14 |
0000PVC011811 |
11 x 14 |
0000PVC011113 |
13 x 17 |
- - |
0,14/0,11 |
17 |
0000PVC011813 |
13 x 17 |
0000PVC011115 |
15 x 19 |
- - |
0,13/0,12 |
19 |
0000PVC011815 |
15 x 19 |
0000PVC011116 |
16 x 21 |
- - |
0,14/0,13 |
21 |
0000PVC011817 |
17 x 21 |
0000PVC011121 |
21 x 27 |
- - |
0,26/0,21 |
27 |
0000PVC011822 |
22 x 27 |
0000PVC011130 |
30 x 36 |
- - |
0,35/0,33 |
36 |
0000PVC011831 |
31 x 36 |
0000PVC011138 |
38 x 45 |
- - |
0,54/0,49 |
45 |
0000PVC011839 |
39 x 45 |
0000PVC011144 |
44 x 52 |
- - |
0,67/0,61 |
52 |
0000PVC011845 |
45 x 52 |
0000PVC011148 |
48 x 56 |
- - |
0,70/0,65 |
56 |
0000PVC011849 |
49 x 56 |
|

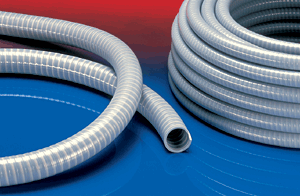

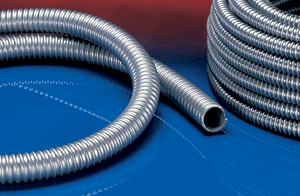

PROTECCION CABLES |
Manguera para protección de cables, mangueras hidráulicas, instalaciones eléctricas. |
Protección IP-68 EN-60529 para PVC-118 y para el tipo PVC 131. |
Temperatura de -5ºC a +60ºC para tipo 112 y para el tipo 131. |
Tubo de PVC para ambos tipos. |
Refuerzo con espiral de PVC para ambos tipos. |
Tubo interior totalmente liso. |
Suministro en rollos de 50 metros hasta 21 mm y de 25 metros de 29 a 48 mm. |
|
|
|
PVC 112/PVC 131 |
|
Código PVC-112 |
Diámetro Int/Ext (en mm) |
P.Trabajo (en bar) 112-131 |
Peso (kg/m) 112-131 |
Radio (en mm) 112-131 |
Código PVC-131 |
Diámetro. Int./Ext. (en mm) |
0000PVC011207 |
7 x 10 |
- - |
0,05/0,10 |
15/56 |
0000PVC013110 |
10 x 14 |
0000PVC011210 |
10 x 14 |
- - |
0,06/0,12 |
21/68 |
0000PVC013113 |
13 x 17 |
0000PVC011213 |
13 x 17 |
- - |
0,07/0,14 |
26/76 |
0000PVC013115 |
15 x 19 |
0000PVC11214 |
14 x 19 |
- - |
0,10/0,16 |
29/84 |
0000PVC013117 |
17 x 21 |
0000PVC011216 |
16 x 21 |
- - |
0,12/0,25 |
32/108 |
0000PVC013122 |
22 x 27 |
0000PVC011221 |
21 x 27 |
- - |
0,20/0,40 |
41/144 |
0000PVC013130 |
30 x 27 |
0000PVC011229 |
29 x 36 |
- - |
0,25/0,52 |
54/180 |
0000PVC013138 |
38 x 36 |
0000PVC011238 |
38 x 45 |
- - |
0,38/0,66 |
68/208 |
0000PVC013145 |
45 x 52 |
0000PVC011248 |
48 x 56 |
- - |
0,48/0,70 |
84/224 |
0000PVC013149 |
49 x 56 |
|
|
|
