ASPIRACION

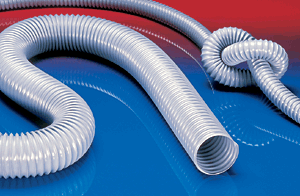

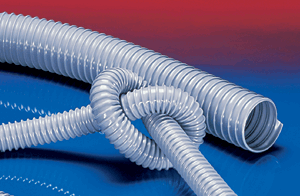

Manguera para aspiración de gases, humos, vapores, etc.
Temperatura de -20ºC a +70ºC.
Tubo interior de PVC gris, espesor 0,6 tipo 310 y 0,9mm para tipo 341.
Refuerzos alambre de acero galvanizado.
Retardante a la llama conforme a UL94-HB.
Conductividad "Protape" para 310, y "Airduc" para 341 (solicite información).
Suministro en tramos de 10 metros.

PVC 310/PVC 341

Código PVC-310
Diámetro Int/Ext (en mm)
P.Trabajo (en bar) 310-341
Peso (kg/m) 310-341
Vacío bar 310-341
Radio (en mm) 310-341
Código PVC-341
Diámetro Int./Ext. (en mm)
- -
- -
- -/1,37
- -/0,19
- -/0,26
- -/27
0000PVC341020
20 x 27
- -
- -
- -/1,11
- -/0,23
- -/0,25
- -/32
0000PVC341025
25 x 32
0000PVC310030 30 x 37 0,67/0,93 0,24/0,25 0,20/0,23 37/38 0000PVC341030 30 x 38
0000PVC310032
32 x 39
0,63/0,87
0,26/0,27
0,20/0,23
39/40
0000PVC341032
32 x 40
0000PVC310035
35 x 42
0,58/0,80
0,28/0,30
0,19/0,22
42/43
0000PVC341035
35 x 43
0000PVC310038
38 x 45
0,55/0,74
0,30/0,32
0,18/0,21
45/46
0000PVC341038
38 x 46
0000PVC310040
40 x 47
0,51/0,70
0,32/0,33
0,18/0,21
47/48
0000PVC341040
40 x 48
- -
- -
- -/0,67
- -/0,35
- -/0,20
- -/50
0000PVC341042
42 x 50
0000PVC310045
45 x 52
0,46/0,63
0,35/0,37
0,16/0,19
52/53
0000PVC341045
45 x 53
0000PVC310050
50 x 58
0,41/0,56
0,31/0,41
0,15/0,18
58
0000PVC341050
50 x 58
0000PVC310055
55 x 63
0,37/0,51
0,33/0,45
0,14/0,16
63
0000PVC341055
55 x 63
0000PVC310060
60 x 68
0,34/0,47
0,36/0,49
0,12/0,14
68
0000PVC341060
60 x 68
0000PVC310065
65 x 73
0,31/0,44
0,39/0,52
0,10/0,12
73
0000PVC341065
65 x 73
0000PVC310070
70 x 78
0,29/0,41
0,42/0,54
0,09/0,10
78/79
0000PVC341070
70 x 79
0000PVC310075
75 x 83
0,27/0,38
0,45/0,58
0,08/0,09
83/84
0000PVC341075
75 x 84
0000PVC310080
80 x 88
0,25/0,36
0,47/0,61
0,07/0,09
88/89
0000PVC341080
80 x 89
0000PVC310090
90 x 98
0,23/0,32
0,53/0,70
0,06/0,07
98/99
0000PVC341090
90 x 99
0000PVC310100
100 x 108
0,20/0,28
0,57/0,85
0,05/0,06
108/109
0000PVC341100
100 x 109
- -
- -
- -/0,27
- -/0,89
- -/0,06
- -/114
0000PVC341105
105 x 114
0000PVC310110
110 x 118
0,18/0,26
0,62/0,94
0,04/0,05
118/119
0000PVC341110
110 x 119
0000PVC310115
115 x 123
0,18/0,25
0,65/0,98
0,04/0,05
123/124
0000PVC341115
115 x 124
0000PVC310120
120 x 128
0,17/0,24
0,68/1,02
0,04/0,05
128/129
0000PVC341120
120 x 129
0000PVC310125
125 x 133
0,16/0,23
0,71/1,06
0,03/0,04
133/134
0000PVC341125
125 x 134
0000PVC310130
130 x 138
0,16/0,22
0,73/1,10
0,03/0,04
138/139
0000PVC341130
130 x 139
0000PVC310140
140 x 148
0,15/0,20
0,79/1,18
0,03/0,04
148/148
0000PVC341140
140 x 149
0000PVC310150
150 x 158
0,14/0,19
0,84/1,26
0,03/0,04
158/159
0000PVC341150
150 x 159
0000PVC310160
160 x 168
0,13/0,18
0,87/1,35
0,03
168/169
0000PVC341160
160 x 169
0000PVC310170
170 x 178
0,12/0,17
0,95/1,43
0,03
178/179
0000PVC341170
170 x 179
0000PVC310175
175 x 183
0,12/0,16
0,98/1,47
0,03
183/184
0000PVC341175
175 x 184
0000PVC310180
180 x 188
0,11/0,16
1,00/1,51
0,02/0,03
188/189
0000PVC341180
180 x 189
0000PVC310200
200 x 208
0,10/0,14
1,11/1,67
0,02/0,03
208/209
0000PVC341200
200 x 209
0000PVC310215
215 x 223
0,09/- -
1,19/- -
0,02/- -
223/- -
- -
- -
0000PVC310225
225 x 233
0,09/0,11
1,25/2,26
0,01
233/234
0000PVC341225
225 x 234
0000PVC310250
250 x 258
0,08/0,10
1,39/2,51
0,01
258/259
0000PVC341250
250 x 259
0000PVC310275
275 x 283
0,07/0,10
1,50/2,76
0,01
283/284
0000PVC341275
275 x 284
0000PVC310280
280 x 288
0,07/0,09
1,55/2,80
0,01
288/289
0000PVC341280
280 x 289
0000PVC310300
300 x 309
0,07/0,09
1,95/3,00
0,01
309
0000PVC341300
300 x 309
0000PVC310315
315 x 324
0,06/0,09
2,05/3,15
0,01
324
0000PVC341315
315 x 324
- -
- -
- -/0,09
- -/3,20
- -/0,01
- -/329
0000PVC341320
320 x 329
0000PVC310325
325 x 334
0,06/0,08
2,11/3,25
0,01
334
0000PVC341325
325 x 334
0000PVC310350
350 x 359
0,06/0,08
2,27/3,50
0,005
359
0000PVC341350
350 x 359
0000PVC310375
375 x 384
0,05/0,07
2,43/4,21
0,005
384
0000PVC341375
375 x 384
0000PVC310400
400 x 409
0,04/0,07
2,59/4,49
0,005
409/410
0000PVC341400
400 x 410
0000PVC310450
450 x 459
0,04/0,06
2,91/5,05
0,005
459/460
0000PVC341450
450 x 460
0000PVC310500
500 x 510
0,04/0,05
4,71/5,60
0,005
510
0000PVC341500
500 x 510

Podemos fabricar otros diámetros, presiones y colores sobre Demanda. JJB EUROMANGUERAS, S.L., puede modificar sin previo aviso las características técnicas de sus productos. Rogamos nos consulten.
