ptfe CORRUGADO |

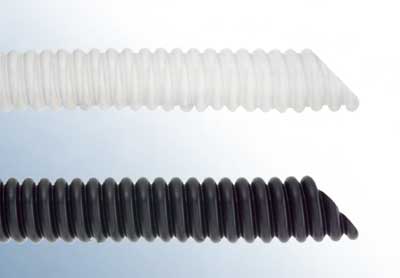

Tubo de PTFE corrugado a ondas helicoidales |
Interior corrugado que le confiera mayor flexibilidad y radio de curvatura |
Temperatura de -70ºC a +260ºC |
Tubo de PTFE virgen (tipo TCM) o antiestatico (TCMA) |
Suministro unicamente con los terminales engatillados o prensados o acabado con extremos lisos para facilitar su racorado |
|
|
|
PTFE TCM - TCMA |
|
|
Diámetro Int./Ext. (en mm)
|
|
|
P.Trabajo/Rotura en bar 20ºC |
|
Codigo |
PTFETCM000006 |
1/4" 6,9 x 11,5 |
0,047 |
25 |
4/14 |
80 |
PTFETCMA00006 |
PTFETCM000010 |
3/8" 10,5 x 14,7 |
0,058 |
25 |
4/14 |
76 |
PTFETCMA00010 |
PTFETCM000013 |
1/2" 13,6 x 16,4 |
0,072 |
50 |
4/14 |
74 |
PTFETCMA00013 |
PTFETCM000016 |
5/8" 16,4 x 23,2 |
0,097 |
65 |
3/11 |
53 |
PTFETCMA00016 |
PTFETCM000019 |
3/4" 20,5 x 29,4 |
0,142 |
55 |
3/11 |
40 |
PTFETCMA00019 |
PTFETCM000025 |
1" 25,5 x 36,2 |
0,194 |
85 |
3/10 |
30 |
PTFETCMA00025 |
PTFETCM000032 |
1-1/4" 32,5 x 44,1 |
0,258 |
100 |
2,5/9 |
22 |
PTFETCMA00032 |
PTFETCM000038 |
1-1/2" 37,5 x 49,4 |
0,377 |
120 |
2,5/9 |
50 |
PTFETCMA00038 |
PTFETCM000045 |
1-3/4" 45,5 x 58,8 |
0,455 |
135 |
2/8 |
45 |
PTFETCMA00045 |
PTFETCM000050 |
2" 50,5 x 64,1 |
0,522 |
165 |
2/8 |
40 |
PTFETCMA00050 |
PTFETCM000063 |
2-1/2" 63,5 x 86,1 |
0,654 |
230 |
1,5/6 |
30 |
PTFETCMA00063 |
PTFETCM000075 |
3" 74,5 x 96,6 |
0,765 |
260 |
1,3/5 |
22 |
PTFETCMA00075 |
PTFETCM000100 |
4" 99,5 x 124,5 |
1,310 |
300 |
1/4,5 |
14 |
PTFETCMA00100 |
PTFETCM000150 |
6" 154,0 x 185,0 |
2,315 |
520 |
1/4 |
12 |
PTFETCMA00150 |
|
|
|

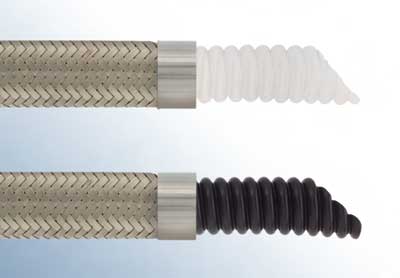

Tubo de PTFE corrugado a ondas paralelas |
Temperatura de -70ºC a +260ºC |
Interior corrugado que le confiera mayor flexibilidad y radio de curvatura |
Tubo interior extrusionado PTFE virgen (tipo TCMB4) o antiestatico (TCMBA) |
Cubierta exterior de trenza de acero inoxidable AISI-304 |
Suministro unicamente con los terminales engatillados o prensados |
|
|
PTFE TCMB - TCMBA |
|
|
Diámetro Int./Ext. (en mm)
|
|
|
P.Trabajo/Rotura en bar 20ºC |
|
Codigo |
PTFETCMB00006 |
1/4" 6,9 x 11,5 |
0,047 |
25 |
4/14 |
80 |
PTFETCMBA0006 |
PTFETCMB00010 |
3/8" 10,5 x 14,7 |
0,058 |
25 |
4/14 |
76 |
PTFETCMBA0010 |
PTFETCMB00013 |
1/2" 13,6 x 16,4 |
0,075 |
50 |
4/14 |
74 |
PTFETCMBA0013 |
PTFETCMB00016 |
5/8" 16,4 x 23,2 |
0,097 |
65 |
3/11 |
53 |
PTFETCMBA0016 |
PTFETCMB00019 |
3/4" 20,5 x 29,4 |
0,142 |
55 |
3/11 |
40 |
PTFETCMBA0019 |
PTFETCMB00025 |
1" 25,5 x 36,2 |
0,194 |
85 |
3/10 |
30 |
PTFETCMBA0025 |
PTFETCMB00032 |
1-1/4" 32 x 44,1 |
0,258 |
100 |
2,5/9 |
22 |
PTFETCMBA0032 |
PTFETCMB00038 |
1-1/2" 37,5 x 49,4 |
0,377 |
120 |
2,5/9 |
50 |
PTFETCMBA0038 |
PTFETCMB00045 |
1-3/4" 45,5 x 58,8 |
0,455 |
135 |
2/8 |
45 |
PTFETCMBA0045 |
PTFETCMB00050 |
2" 50,5 x 64,1 |
0,522 |
165 |
2/8 |
40 |
PTFETCMBA0050 |
PTFETCMB00063 |
2-1/2" 63,5 x 86,1 |
0,654 |
230 |
1,5/6 |
30 |
PTFETCMBA0063 |
PTFETCMB00075 |
3" 74,5 x 96,6 |
0,765 |
260 |
1,3/5 |
22 |
PTFETCMBA0075 |
PTFETCMB00100 |
4" 99,5 x 124,5 |
1,310 |
300 |
1/4,5 |
14 |
PTFETCMBA0100 |
PTFETCMB00150 |
6" 154 x 185 |
2,315 |
520 |
1/4 |
12 |
PTFETCMBA0150 |
|
|
