PTFE CORRUGADO |

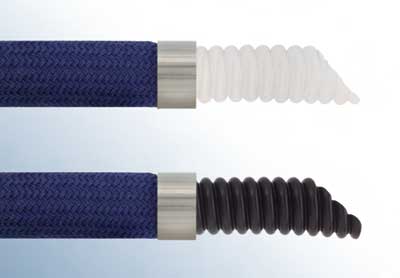

Tubo de PTFE corrugado a ondas helicoidales |
Interior corrugado que le confiera mayor flexibilidad y radio de curvatura |
Temperatura de -70ºC a +90ºC |
Tubo de PTFE virgen (tipo TCMB6) o antiestatico (TCMB6A) |
Cubierta exterior de trenza de polipropileno azul |
Suministro unicamente con los terminales engatillado o prensados |
|
|
|
PTFE TCMB6 - TCMB6A |
|
|
Diámetro Int./Ext. (en mm)
|
|
|
P.Trabajo/Rotura en bar 20ºC |
|
Codigo |
PTFETCMB60013 |
1/2" 13,6 x 23,4 |
0,130 |
50 |
10/40 |
20 |
PTFETCMB6A013 |
PTFETCMB60016 |
5/8" 16,4 x 26,3 |
0,240 |
65 |
10/40 |
20 |
PTFETCMB6A016 |
PTFETCMB60019 |
3/4" 20,5 x 31,1 |
0,340 |
55 |
10/40 |
20 |
PTFETCMB6A019 |
PTFETCMB60025 |
1" 25,5 x 36,7 |
0,460 |
85 |
10/40 |
20 |
PTFETCMB6A025 |
PTFETCMB60032 |
1-1/4" 32,5 x 44,4 |
0,570 |
100 |
10/40 |
20 |
PTFETCMB6A032 |
PTFETCMB60038 |
1-1/2" 37,5 x 49,7 |
0,710 |
120 |
10/40 |
20 |
PTFETCMB6A038 |
PTFETCMB60045 |
1-3/4" 45,5 x 58,3 |
1,050 |
135 |
10/40 |
20 |
PTFETCMB6A045 |
PTFETCMB60050 |
2" 50,5 x 62,5 |
1,150 |
165 |
10/40 |
20 |
PTFETCMB6A050 |
PTFETCMB60063 |
2-1/2" 63,5 x 83,4 |
2,140 |
230 |
7/28 |
20 |
PTFETCMB6A063 |
PTFETCMB60075 |
3" 74,5 x 96,9 |
3,310 |
260 |
6/24 |
20 |
PTFETCMB6A075 |
|
|
|

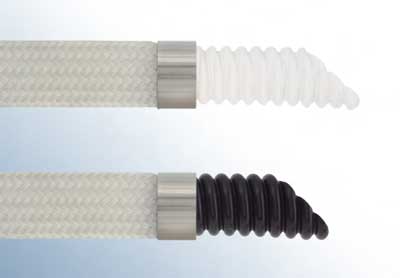

Tubo de PTFE corrugado a ondas paralelas |
Temperatura de -70ºC a +150ºC |
Interior corrugado que le confiera mayor flexibilidad y radio de curvatura |
Tubo interior extrusionado PTFE virgen (tipo TCMB9) o antiestatico (TCMB9A) |
Cubierta exterior de trenza de PVDF |
Suministro unicamente con los terminales engatillados o prensados |
|
|
PTFE TCMB9 - TCMB9A |
|
|
Diámetro Int./Ext. (en mm)
|
|
|
P.Trabajo/Rotura en bar 20ºC |
|
Codigo |
PTFETCMB90013 |
1/2" 13,6 x 23,4 |
0,130 |
50 |
10/40 |
20 |
PTFETCMB9A013 |
PTFETCMB90016 |
5/8" 16,4 x 28,2 |
0,240 |
65 |
10/40 |
20 |
PTFETCMB9A016 |
PTFETCMB90019 |
3/4" 20,5 x 33,9 |
0,340 |
55 |
10/40 |
20 |
PTFETCMB9A019 |
PTFETCMB90025 |
1" 25,5 x 40,7 |
0,460 |
85 |
10/40 |
20 |
PTFETCMB9A025 |
PTFETCMB90032 |
1-1/4" 32,5 x 48,1 |
0,570 |
100 |
10/40 |
20 |
PTFETCMB9A032 |
PTFETCMB90038 |
1-1/2" 37,5 x 52,4 |
0,710 |
120 |
10/40 |
20 |
PTFETCMB9A038 |
PTFETCMB90045 |
1-3/4" 45,5 x 63,9 |
1,050 |
135 |
10/40 |
20 |
PTFETCMB9A045 |
PTFETCMB90050 |
2" 50,5 x 69,2 |
1,150 |
165 |
10/40 |
20 |
PTFETCMB9A050 |
PTFETCMB90063 |
2-1/2" 63,5 x 91,6 |
2,140 |
230 |
7/28 |
20 |
PTFETCMB9A063 |
PTFETCMB90075 |
3" 74,5 x 102,2 |
3,310 |
260 |
6/24 |
20 |
PTFETCMB9A075 |
|
|
